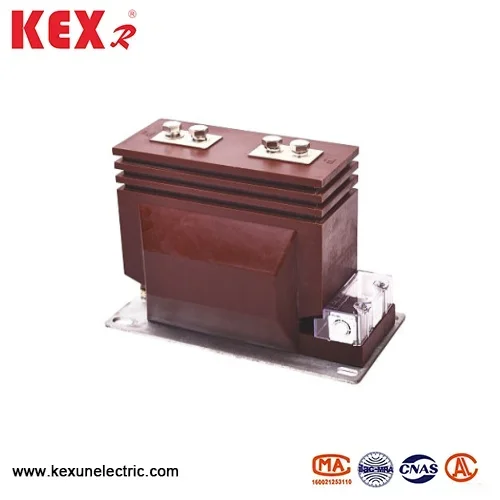

Gasfyldt kabinet CB strømtransformator
LZZB6-10 type gasfyldt skab CB-strømtransformator produceret af den kinesiske producent Kexun er en fuldt lukket søjlestruktur med epoxy-støbning, som er egnet til kredsløb, effektmåling og relæbeskyttelse i indendørs kraftledninger og udstyr med en nominel spænding på 10 kV og nedenfor og nominel frekvens på 50Hz.
Model: Lzzb6-10
Brand ： Kexr
Model: Lzzb6-10
Brand ： Kexr
● LZZB6-10 Type gas filled cabinet cb current transformer Product features
LZZB6-10 Type gas filled cabinet cb current transformer has the characteristics of small size, light weight and strong insulation, and can be customized into various special specifications according to customers' needs, which is very flexible.
● Model meaning of LZZB6-10 Type gas filled cabinet cb current transformer
L: Current Transformer
ZZ: Post Type
B: winding with protection stage
6: Design serial number
10: Rated voltage 10kV
●Technical parameters of LZZB6-10 Type gas filled cabinet cb current transformer
◆Power frequency withstand voltage: 42kV/1min
◆Lightning impulse: 75kV (peak value)
◆Protection grade: IP54
◆Weight range: 8-25kg (according to different specifications)
● Typical application scenarios
◆10kV switchgear (KYN28A, etc.)
◆Measurement and protection of distribution station
◆Industrial power monitoring system
● LZZB6-10 Type gas filled cabinet cb current transformer Technical parameter table
|
Model |
Rated primary current |
Rated second current |
Accuracy group |
Rated output |
1s thermal current |
Rated dynamic current |
|
LZZB 6-10 |
5~100 |
5 or 1 |
0.2S/0.2s |
10/10 |
150/m |
375/m |
|
150~200 |
0.2s/0.5 |
10/10 |
21.5 |
54 |
||
|
300~400 |
0.2/10P10 |
10/15 |
31.5 |
80 |
||
|
500~600 |
10P10/10P10 |
10/10 |
45 |
112.5 |

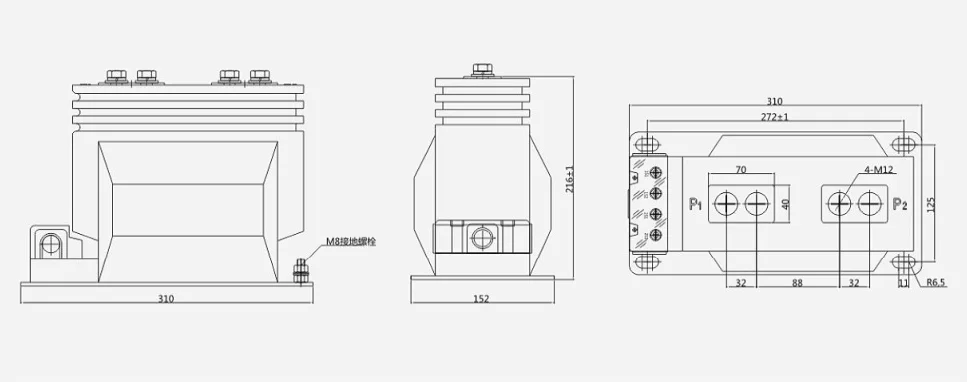

● Overall dimensions of the LZZB6-10 Type gas filled cabinet cb current transformer
